Pegoda Smart Card Reader CLRD730

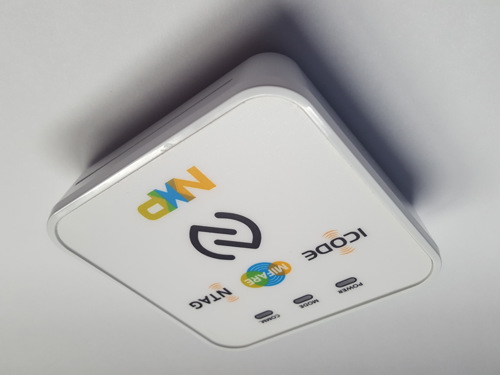

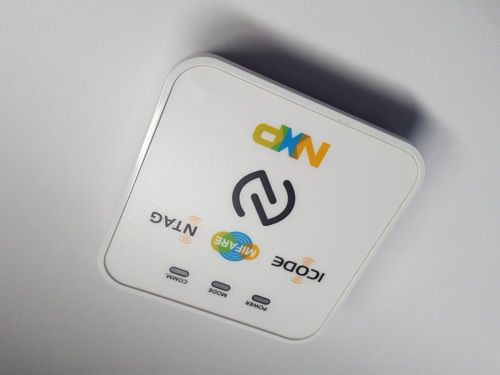

Contactless desktop reader CLRD730 is an evaluation reader made as reference design for contactless applications based on MIFARE, NTAG and ICODE products. Reader contains PN7642 NFC open controller. It is Cortex M33 microcontroller with integrated NFC interface and also contains powerful security. It supports different standards for reading writing to/from contactless cards on frequency 13,56 MHz. Also supports NFC functionality. Small size antenna permits reading/writing on distance up to 75 mm.

Pegoda

Pegoda Smart Card Reader CLRD730

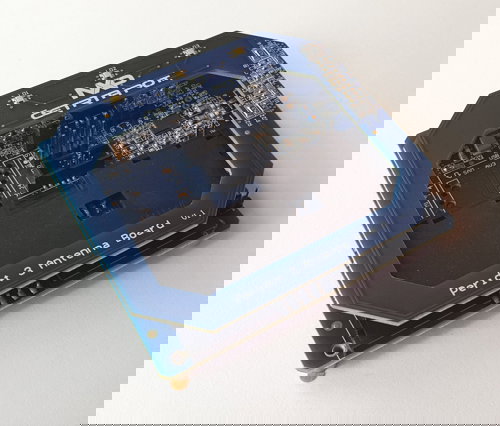

Description

Reader has integrated security subsystem (SAM AV1/AV2). Additional security is added with use SAM AV3 module in two options; first option as MIFARE SAM AV3 Add-On Board module in non-X mode and second option as SAM AV3 contact card via TDA8035.

Reader has two main communication interfaces (accessible from outside of the reader): one USB 2.0 full-speed serial port (marked as »USB-C 1«) and one I2C serial port. Second additional USB port is added for external power supply only (marked as »USB-C 2«). USB communication port is intended for communication with personal computer (application software).

Mode button (from side of the reader) is intended to switch between different communication protocols on USB-C 1 port: PC/SC mode or VCOM mode. The Pegoda CLRD730 desktop reader is designed to work with standard PC/SC and VCOM drivers on Windows 10/11, MacOS and Linux.

A MIFARE SAM AV3 contact ID-1 card through TDA8035 can be used through the offered contact interface of the CLRD730 reader.

Additional communication interfaces are accessible from inside of the CLRD730 reader: one SWD interface, second I2C serial interface (host). These interfaces are intended for development (programming/debugging) purposes.

CLRD730 device is desktop contactless reader and intended for use in development environment for development purposes – as reference contactless readers for working with MIFARE contactless cards and mobile phones (with NFC). The main purpose is to develop new software and hardware for contactless readers based on PN76XX family NFC open controllers.

Features

Contactless smart card reader with additional security based on PN7642 NFC open controller IC and SAM AV3 security module/card.
Based on PN7642 NFC open controller IC and SAM AV3 security module/card.
Contactless operating frequency 13.56 MHz with typical reading up to 100mm distance.
Supports MIFARE, NTAG and ICODE and dual interface card ICs with related standards.
Supports MIFARE 1K, MIFARE 4K, MIFARE Ultralight, MIFARE Plus and MIFARE DESFire products (EV1/EV2 and EV3).
Supports MIFARE 1K/4K encryption in reader/writer mode.
Supports ISO/IEC 18000-3-M1&M3 with data rates up to 212 kbits/s (ICODE, NTAG5).
ISO/IEC 14443A with data rates up to 848kbits/s, ISO/IEC15693 and ISO/IEC 18000-3-M1&M3 with data rates up to 212 kbits/s (ICODE, NTAG5).
Supports contactless RF communication according to the FeliCa protocol at 212 Kbps and 424 Kbps.
Supports SAM AV3 Security via MIFARE SAM AV3 Add-On board module or via SAM AV3 contact ID-1 card.
Supports communication interfaces: USB 2.0 and I2C with additional communication interfaces from reader PCB via SWD, I2C Host and several Test pins (IRQ, Select, Aux).
Additional communication interfaces direct from readers pcb: SWD, I2C Host and several Test pins (IRQ, Select, Aux).
Supports serial communication via USB 2.0 port with personal computer.
Supports PC/SC mode and VCOM mode via USB interface.
USB bus powered 5 V DC power supply.
